Introducing

The Infinite + Foil

Game-Changing Breakthrough

The Latest Advancement in Wind Foiling

Phantom Windsurfing products have been a game-changer in windfoiling over the last three years, revolutionizing the sport and making the fin obsolete for racing.

We are proud to announce the launch of the Infinite Ltd + foil, which will set a new benchmark for high-performance windsurfing foils in the coming years.

It is a completely new design developed in close collaboration with D3 Applied Technologies and Redondo Studio (America's cup designers) and Nicolas Goyard. PHANTOM is the first company to set a Velocity Prediction Program for windfoiling based on cutting edge technologies previously used exclusively on the America’s Cup. This software is allowing to optimise and trim every parts independently (front wing size and angle, rear wing, fuselage, rig, board...) and see the real influence on speed through the entire wing range. This revolutionary tool provides very accurate datas to then refine the design of our foils with Computerised Fluid Dynamics analysis.

The INFINITE Ltd + foils are high end and super exclusive products, only 50 foils will be produced in 2024

2023 Défi Wind winner / 2023 speed World Champion / 41.91kts on 2sec / 2023 PWA Fuerte winner

Pushing the boundaries of what was yet possible in the Foiling World

The Infinite Foil features:

3 rear wings : 190cm2 for long distance and slalom light wind, 170cm2 for slalom medium wind and 150cm2 for speed.

Optimized connection with the fuselage.

3 fuselages : The fuselages are made of titanium which allow to reduce significantly the section

The frontal area is reduced by 11% and the wetted surface area is reduced by 10% compared to the PWA 100 fuselage.

Fuselages are both 100cm long, one has the front wing moved 10mm backward as compare to the existing 100 EVO, the other has the front wing moved 30mm backward

1 mast : Super thin and narrow 95cm mast with a new connection inspired with our wing foils which is more compact

Reducing the chord allows for a 4% reduction in wetted surface area compared to the R95 PWA mast and an 11% reduction compared to the R100.

6 front wings : 800cm2 for long distance race, 650cm2 Slalom light wind, 560cm2 for Slalom medium, 475cm2 for Slalom medium wind, 410cm2 for Slalom high wind, 360cm2 for speed.

New profile with improved laminarity that allows for a 5% reduction in drag. Optimized dihedral angle at the wing root to locally reduce drag caused by interference with the fuselage.

The optimisation of the front wing/fuselage connection provides a significant reduction in drag.

The new more compact mast/fuselage connection allows the fuselage section to be significantly reduced.

The new shape of the front wings provides more stability and tolerance.

  • William's first world title - take a look at his report ! Click here

  • Nicolas won all races except one, ahead of 1400 racers at the most prestigious windsurfing event !

    Find his report here

Mast INFINITE

Length
95 cm

Thickness
11,7 mm

Construction
Ultra High Modulus carbon prepreg

Connexion
Only Infinite Fuselage

Program
Slalom /Longue
distance

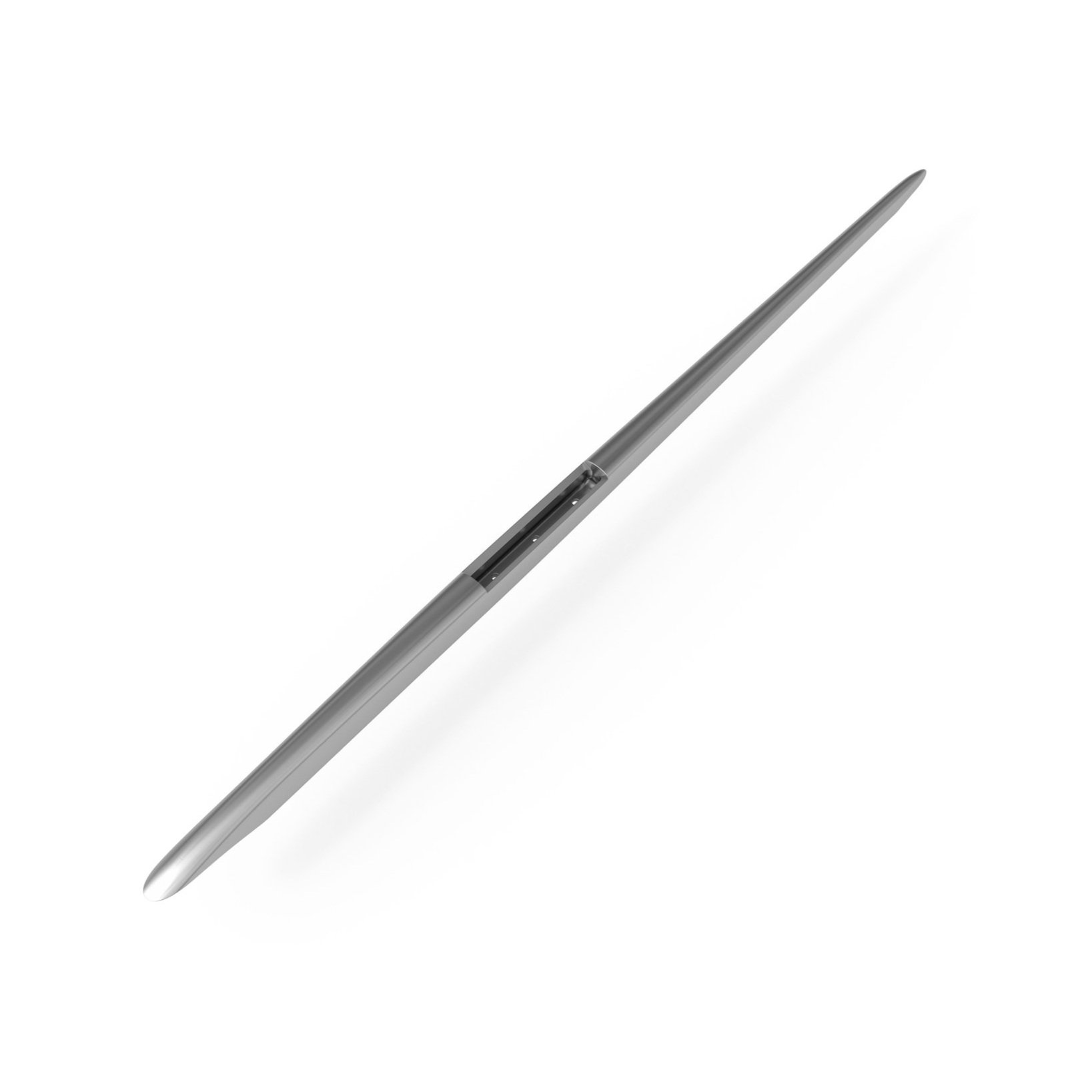

Fuselage INFINITE
-10

Total length
100 cm

Front wing position
-10mm (compared to
100 Evo)

Construction
Titanium Grade 5

Program
Slalom light wind /
Longue Distance

Recommended Front
Wing
INFINITE 800/650/560

Fuselage INFINITE
-30

Total length
100 cm

Front wing position
-30 mm (compared to
100 Evo)

Construction
Titanium Grade 5

Program
Slalom medium wind &
strong wind / Speed

Recommended Front
Wing
INFINITE 560/475/410/360

FW INFINITE 560

Surface
560 cm2

Aspect ratio
10,8

Span
78 cm

Construction
Ultra High Modulus carbon prepreg

Program
Slalom medium
wind

FW INFINITE 800

Surface
800 cm2

Aspect ratio
9,7

Span
88 cm

Construction
Ultra High Modulus carbon prepreg

Program
Long distance/
slalom light wind

FW INFINITE 650

Surface
650 cm2

Aspect ratio
10,3

Span
82 cm

Construction
Ultra High Modulus carbon prepreg

Program
Slalom light & medium
wind

FW INFINITE 475

Surface
475 cm2

Aspect ratio
9,7

Span
68 cm

Construction
Ultra High Modulus carbon prepreg

Program
Slalom medium &
strong wind

FW INFINITE 360

Surface
360 cm2

Aspect ratio
8,7

Span
56 cm

Construction
Ultra High Modulus carbon prepreg

Program
Speed & Slalom
strong wind

RW INFINITE 190

Surface
190 cm2

Span
42 cm

Construction
Ultra High Modulus carbon prepreg

Program
Long distance &
slalom light wind

Fuselage INFINITE
105

Total length
105 cm

Front wing position
+20 mm (compared to
100 Evo)

Construction
Titanium Grade 5

Program
Course racing &
Longue distance

Recommended Front
Wing
INFINITE 800

RW INFINITE 170

Surface
170 cm2

Span
41 cm

Construction
Ultra High Modulus carbon prepreg

Program
Slalom medium & strong
wind / Speed

FW INFINITE 410

Surface
410 cm2

Aspect ratio
9

Span
61 cm

Construction
Ultra High Modulus carbon prepreg

Program
Slalom strong wind

RW INFINITE 150

Surface
150 cm2

Span
38 cm

Construction
Ultra High Modulus carbon prepreg

Program
Slalom strong
wind / Speed

Minimal resistance

Introduce

The INFINITE ltd Sail

The INFINITE Ltd is our utra exclusive and ultimate foil sail designed for racing and speed records.

The new generation of reinforced construction sails, designed to elevate your windsurfing experience to new heights. Crafted with precision and engineered for performance, these sails boast a host of advanced features that make them stand out in the world of windsurfing.

Specs

In conclusion

  • Introducing the pinnacle of windsurfing performance: The INFINITE Ltd foil sail, crafted for the most daring competitors chasing speed records and racing glory.

  • The INFINITE Ltd boasts the revolutionary i-LEX filamentary fabric in Dyneema, ditching traditional mylar film for unmatched strength and agility. Crafted with 80% of this innovative fabric, it minimizes stretch for superior stability and control, even in extreme conditions.

    Its radial construction at the clew ensures durability under stress, while its optimized shape enhances aerodynamic finesse and stability, propelling sailors to new speed records. Dominate the waves with the ultimate fusion of material innovation and design excellence.

  • Ultra limited edition INFINITE Ltd, available in just 40 units worldwide. Choose from a selection of sizes: 8 units of 8.8, 10 units of 7.7, 10 units of 6.6, 8 units of 5.5, and 4 units of 4.4. Hurry, secure yours before they're gone!

Incredible dynamics

Introduce

The INFINITE ltd Boards

The new Infinite LTD boards have redefined our approach of thinking and designing wind foiling boards.

This board features a revolutionary hull shape developed by Nicolas Goyard, with a sharp-chined design. The sharp-chined hull design significantly reduces aerodynamic drag, decreases the wetted surface during touch-downs, and allows for a high angle of heel and tight gybes without touching the water surface. The whole board concept has been rethought in order to reduce aerodynamic drag and increases stability in flight.

“After years of researching the entire foiling gear, I've been searching for a way to take another step forward in the foiling world. The goal was to have a breakthrough and enter a new generation of boards, just like in 2020 when everybody started adopting pretty flat deck shapes.

The idea of a non-flat hull shape is not originally mine; I came across it on some windsurfing forums. From there, I designed a first prototype to see how it could work. The idea showed promise as it allowed the rails to be higher above the water while making them thinner, potentially reducing drag.

However, I was skeptical about how the board would perform during touchdowns and, more importantly, for planning and take-off. Then I tried it, and I was in shock. The board was more stable in the air, felt lighter, the jibes were amazing, and the touchdowns were good. Moreover, it took off better than any of my previous designs! My brother, who initially didn't believe me, tried it and confirmed. We were on the right path! Of course, it was a first prototype, and I knew it could be much better.

From there, it was a lengthy 3D research process using simulation tools to find the perfect balance between minimizing aerodynamic drag and maintaining air stability. Air stability was the factor I focused on the most, and it worked even better than expected. We aimed to achieve this without sacrificing planning ability, improving comfort during touchdowns, and making jibing easier. The overall board now has more performance than before, and on top of that, it's easier!

It was a real challenge, but I am so excited about the result! The Infinite 86 even allowed me to break my speed record in wind conditions where I was supposed to use a much smaller board. This proves how much aerodynamic drag has improved and how much easier it is to push on the foil when you feel safe to take a gust and/or make a touchdown at over 40 knots. I can't wait to keep pushing boundaries with these amazing boards!”

Designer Corner - Nicolas Goyard

Infinite ltd

For those who want to push the boundaries of high-performance foiling.

This board blew our minds during the R&D campaign. The designer himself, Nicolas, beat his own speed record on the first try with a top speed of 41.91 and an average of 39.14 on 500m! It is our ultimate performance weapon to stay ahead of the competition!

High speed

Ultra high modulus fiber

Aero/Hydrodynamic

The range

INFINITE 76 ltd

Construction
Custom full carbon.
Kevlar in impact zones (nose and around the mast foot).

Max Width
76,5cm

Length
207cm

Volume
145L

Program
Slalom Strong Wind & Speed

Sail range
3,7 - 7,0m2

Weight

9,1 kg

INFINITE 86 ltd

Construction
Custom full carbon.
Kevlar in impact zones (nose and around the mast foot).

Max Width
86cm

Length
210cm

Volume
172L

Program
Slalom Light - Medium & Strong Wind

Sail range
4.4 - 8,8m2

Weight

9,6 kg

INFINITE 86 ltd

Construction
Custom full carbon.
Kevlar in impact zones (nose and around the mast foot).

Max Width
95cm

Length
219cm

Volume
204L

Program
Course racing / Longue distance / Slalom Light Wind

Sail range
7.0 - 10.0m2

Weight

10,0 kg

In conclusion

  • Developed by Nicolas Goyard, with a sharp-chined design. The sharp-chined hull design significantly reduces aerodynamic drag, decreases the wetted surface during touch-downs, and allows for a high angle of heel and tight gybes without touching the water surface. The whole board concept has been rethought in order to reduce aerodynamic drag and increases stability in flight.

  • This board blew our minds during the R&D campaign. The designer himself, Nicolas, beat his own speed record on the first try with a top speed of 41.91 and an average of 39.14 on 500m!

  • New reinforced construction with Kevlar in impact zones (nose and around the mast foot).
